LED Modular Street / Roadway Light Fixture - M4 Description


  • Driver
  • Start Method
  • Hot Re-start
  • Driver UL Rating
  • Driver UL Outdoor Rated
  • Sound Rating
  • ANSI Surge Protection
  • Current Crest Factor
  • Driver Off-State Draw
  • Vibration Compliance
  • Universal Input Line Voltage
  • Projected (L70) @ 25°C
    		• Constant Current
    InstantON
    InstantON
    Class 1
    Wet Location
    Class A
    IEEE C62.41 C High
    1.5 maximum
    0 Watts
    3G
    120-277 VAC
    50/60 Hz
    > 100,000 Hrs.
  • Color Temperature
  • Color Rendering Index (CRI)
  • Minimum Starting Temperature
  • Maximum Starting Temperature
  • Lumens per Watt
  • Shock / Vibration Resistant
  • Power Factor
  • Total Harmonic Distortion
  • Inrush Current Peak
  • FCC Compliance
  • EPA Rating
  • Housing IP Rating
  • Driver IP Rating
  • Optics IP Rating
  • Warranty
    		•  Multiple (+/-300°K)
    > 80
    -40°C
    +50°C
    > 130
    > 0.95
    < 15%
    < 10 Amp
     Part 15, Subp. C
    0.63ft²
    IP65
    IP67
    IP68
    10 Year Limited

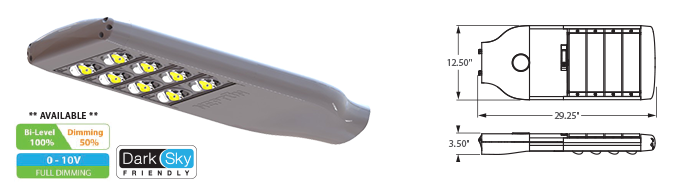

    LED Modular Street / Roadway Light Fixture - M4

    Application, Features and Benefits
    • Heavy-gauge, die-cast aluminum housing designed with excellent thermal management.
    • Corrosion resistant polyester powder finish (custom colors available).
    • Slim, state of the art, low profile design for minimum wind load resistance.
    • Tool-Less entry housing for easy maintenance and installation.
    • Continuous silicone gasket surrounds lens for IP68 weather tight seal.
    • Optional NEMA Twistlock Photocell for increased energy savings.
    • Internal Bubble Level for easy installation.
    • High Output COB LED's with borocilicate glass lens optics.
    • High power factor, low THD driver with 6kV/3kA Surge Protection.
    • Optional 20kV/10kA surge protector available.
    • InstantON flicker-free Cold Start and Hot Re-Start.
    • Up to 20 years Maintenance free operation.
    • 10 Year Limited Warranty on fixture. (LED's, Driver, & Housing)
    • Optional: 0-10V Dimming, Bi-level Dimming, Wi-Fi Control, Remote Monitoring and ON/OFF Control, DC 24V Operation - Solar Compatible

    Product Information

    Model No. Description Rated Watts Input Watts
    		 Delivered Lumens Universal Line Voltage (VAC) Max Line Current (Amp) @ 120-277
    		 THD Power Factor Weight
    LED-89140-M4-UNV LED Roadway Fixture 140
    		 142
    		 18,460 120-277 1.22 - 0.53
    		 <15% >0.95 35 lbs.
    LED-89150-M4-UNV LED Roadway Fixture 150
    		 152
    		 19,760 120-277 1.31 - 0.56 <15% >0.95 35 lbs.
    LED-89160-M4-UNV LED Roadway Fixture 160
    		 162
    		 21,060
    		 120-277 1.39 - 0.60 <15% >0.95 35 lbs.
