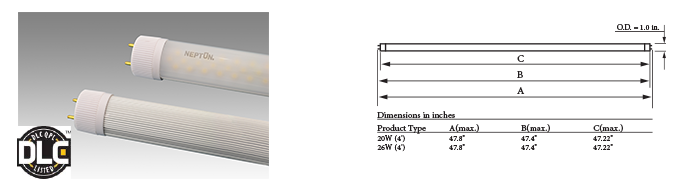

LED T8 - 4ft. Linear Tube - 20W Description
|
LED Driver
Power Supply
Start Method
Hot Re-start
Universal Input Line Voltage
Input Line Frequency
Driver Off-State Draw
Sound Rating
LED / Driver System Life
Lumen Maintenance @50,000Hrs
Color Temperature
|
Self-Ballasted 350mA InstantON InstantON 120-277 VAC 50/60 Hz 0 Watts Class A 70,000 Hrs. > 70% Various |
Color Rendering Index (CRI)
Minimum Starting Temperature
Maximum Starting Temperature
Lumens per Watt
Shock / Vibration Resistant
Power Factor
Total Harmonic Distortion
ETL Listed / UL Standard 1993
FCC Compliance
Warranty
|
> 80 -35°C 45°C > 100 Yes > 0.90 < 20% Yes Part 15, Subp. C 5 Year |
LED T8 - 4ft. Linear Tube - 20W
Application, Features and Benefits
- Aluminum backing for excellent thermal management.
- Frosted non yellowing polycarbonate lens for even glow. (Glare Free)
- Correlated Color Temperatures of 4100°K & 5000°K
- Mercury free design.
- No radiated EMI interference.
- 360 PCS High Output LED's.
- High power factor, low THD internal driver.
- InstantON flicker-free Cold Start and Hot Re-Start.
- Up to 15 years Maintenance free operation.
- 5 Year Warranty.
Product Information
LED-88020-UNV-841 |
20 |
0.174-0.075
|
>0.90 |
<20% |
4,100° |
>80 |
2,060 |
103
|
48" |
Bi-Pin |
120° |
LED-88020-UNV-850 |
20 |
0.174-0.075
|
>0.90 |
<20% |
5,000° |
>80 |
2,080 |
104
|
48" |
Bi-Pin |
120° |
