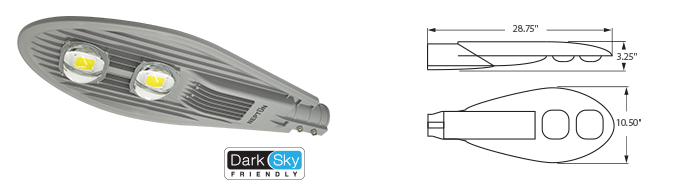

LED Street Light COB Fixture - 83xxx-L2 Series Description


  • Driver
  • Start Method
  • Hot Re-start
  • Driver UL Rating
  • Driver UL Outdoor Rated
  • Sound Rating
  • ANSI Surge Protection
  • Current Crest Factor
  • Driver Off-State Draw
  • Vibration Compliance
  • Universal Input Line Voltage
  • Input Line Frequency
  • Projected (L70) @ 25°C
    		• Constant Current
    InstantON
    InstantON
    Class 1
    Wet Location
    Class A
    IEEE C62.41 C High
    1.5 maximum
    0 Watts
    3G
    120-277 VAC
    50/60 Hz
    > 100,000 Hrs.
  • Color Temperture
  • Color Rendering Index (CRI)
  • Minimum Starting Temperature
  • Maximum Starting Temperature
  • Lumens per Watt
  • Shock / Vibration Resistant
  • Power Factor
  • Total Harmonic Distortion
  • Inrush Current Peak
  • FCC Compliance
  • ETL Listed / UL Standard 1598
  • EPA Rating
  • Housing IP Rating
  • Driver IP Rating
  • Optics IP Rating
  • Warranty
    		•  Multiple (+/-300°K)
    > 80
    -40°C
    +50°C
    > 130
    Yes
    > 0.95
    < 15%
    < 10 Amp
    Yes
    Part 15, Subp. C
    Yes
    0.64ft²
    IP65
    IP67
    IP68
    10 Year Limited

    LED Street Light COB Fixture - 83xxx-L2 Series

    Application, Features and Benefits
    • Heavy-gauge, die-cast aluminum housing with fin cooling design.
    • Corrosion resistant electrocoat grey finish (custom colors available).
    • Slim, state of the art, low profile design for minimum wind load resistance.
    • Continuous silicone gasket surrounds lens for IP68 weather tight seal.
    • High Output COB LED's with borocilicate glass lens optics.
    • High power factor, low THD driver with 6kV/3kA Surge Protection.
    • Optional 20kV/10kA surge protector available.
    • InstantON flicker-free Cold Start and Hot Re-Start.
    • Up to 20 years Maintenance free operation.
    • 10 Year Limited Warranty on fixture. (LED's, Driver, & Housing)
    • Optional: 0-10V Dimming, Wi-Fi Control, Remote Monitoring and ON/ OFF Control, DC 24V Operation - Solar Compatible

    Product Information

    Model No. Description Input Watts
    		 Delivered Lumens Universal Line Voltage (VAC) Max Line Current (Amp) @ 120-277
    		 THD Power Factor Weight
    LED-83100-L2-UNV
    		 LED Street Light Fixture
    		 102
    		 13,260 120-277 0.87 - 0.37 <15% >0.95 12 lbs.
    LED-83120-L2-UNV LED Street Light Fixture 122 15,860
    		 120-277 1.05 - 0.45 <15% >0.95 12 lbs.
