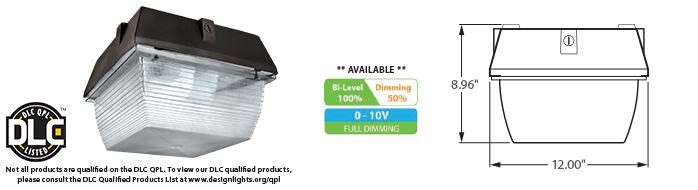

LED - 12 inch Canopy Fixture - LED-12xxx Series Description


  • LED Driver
  • Power Supply
  • Driver UL Rating
  • Driver UL Outdoor Rated
  • Start Method
  • Hot Re-start
  • Universal Input Line Voltage
  • Input Line Frequency
  • Driver Off-State Draw
  • Sound Rating
  • ANSI Surge Protection
  • Projected (L70) @ 25°C
  • Color Temperature
    		•  Constant 350mA
    Class 1
    Wet Location
    InstantON
    InstantON
    120-277 VAC
    50/60 Hz
    0 Watts
    Class A
    IEEE C62.41 C
    > 100,000 Hrs.
    5000°K
  • Color Rendering Index (CRI)
  • Minimum Starting Temperature
  • Maximum Starting Temperature
  • Lumens per Watt
  • Shock / Vibration Resistant
  • Power Factor
  • Total Harmonic Distortion
  • Inrush Current Peak
  • ETL Listed / UL Standard 1598
  • FCC Compliance
  • IP Rating
  • Warranty
    		•  > 80
    -40°F
    +50°F
    > 100
    Yes
    > 0.90
    < 20%
    < 10 Amp
    Yes
    Part 15, Subp. C
    IP65
    5 Year

    LED - 12 inch Canopy Fixture - LED-12xxx Series

    Application, Features and Benefits
    • Heavy-gauge, die-cast aluminum housing.
    • High efficiency, heat and impact resistant, UV protected, non yellowing polycarbonate lens / refractor.
    • Custom designed anodized aluminum reflectors for superior illuminance.
    • Corrosion resistant electrocoat dark bronze finish (custom colors available).
    • Easy removal lens with (4) stainless steel screws.
    • Continuous silicone gasket surrounds lens for weather - tight seal.
    • High Output COB LED's.
    • High power factor, low THD driver with 6kV/3kA Surge Protection.
    • Optional 20kV/10kA surge protector available.
    • Instant-On flicker-free Cold Start and Hot Re-Start.
    • Bright white light (5000˚K) for greater visibility and safety.
    • LED engine design with Advanced Thermal Management
    • Up to 15 year maintenance free operation.
    • 5 Year Warranty on complete fixture. (LED's, Driver, & Housing)
    • Optional:  Bi-Level Dimming, 0-10V Dimming, Remote Monitoring and ON/ OFF Control, DC 24V Operation - Solar Compatible

    Product Information

    Model No. Description Rated Watts Input Watts
    		 Delivered Lumens Universal Line Voltage (VAC) Max Line Current (Amp) @ 120-277
    		 THD Power Factor Weight
    LED-12040-UNV
    		 LED 12" Square Canopy
    		 40 41
    		 4,400 120-277 0.34 - 0.15 <20% >0.90 12 lbs.
    LED-12060-UNV LED 12" Square Canopy 60 61 6,600 120-277 0.52 - 0.22 <20% >0.90 12 lbs.
    LED-12080-UNV LED 12" Square Canopy 80 81 8,800 120-277 0.69 - 0.30 <20% >0.90 12 lbs.
