LED - 15 inch Round Low Profile Canopy Fixture - LED-LP13 Series Description


  • LED Driver
  • Power Supply
  • Driver UL Rating
  • Driver UL Outdoor Rated
  • Start Method
  • Hot Re-start
  • Universal Input Line Voltage
  • Input Line Frequency
  • Driver Off-State Draw
  • Sound Rating
  • ANSI Surge Protection
  • Projected (L70) @ 25°C
  • Color Temperature
    		•  Constant 350mA
    Class 1
    Wet Location
    InstantON
    InstantON
    120-277 VAC
    50/60 Hz
    0 Watts
    Class A
    IEEE C62.41 C
    > 100,000 Hrs.
    5000°K
  • Color Rendering Index (CRI)
  • Minimum Starting Temperature
  • Maximum Starting Temperature
  • Lumens per Watt
  • Shock / Vibration Resistant
  • Power Factor
  • Total Harmonic Distortion
  • Inrush Current Peak
  • FCC Compliance
  • IP Rating
  • Warranty
    		•  > 80
    -40°F
    +50°F
    > 105
    Yes
    > 0.90
    < 20%
    < 10 Amp
    Part 15, Subp. C
    IP65
    10 Year

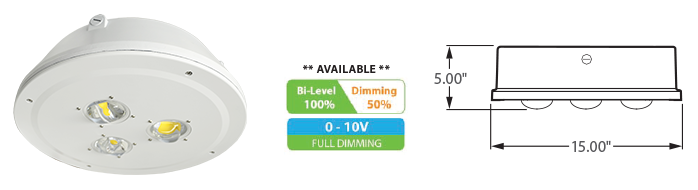

    LED - 15 inch Round Low Profile Canopy Fixture - LED-LP13 Series

    Application, Features and Benefits
    • Heavy-gauge, die-cast aluminum housing.
    • Corrosion resistant electrocoat dark bronze or white finish (custom colors available).
    • Continuous silicone gasket surrounds lens for weather-tight (IP68) seal.
    • Surface mount or Pendant mount available.
    • High Output COB LED's wtih borocilicate glass lens optics.
    • High power factor, low THD driver with 6kV/3kA Surge Protection.
    • Optional 20kV/10kA surge protector available.
    • Instant-On flicker-free Cold Start and Hot Re-Start.
    • Bright white light (5000˚K) for greater visibility and safety.
    • LED engine design with Advanced Thermal Management
    • Up to 20 year maintenance free operation.
    • 10 Year Warranty on complete fixture. (LED's, Driver, & Housing)
    • Optional:  Bi-Level Dimming, 0-10V Dimming, Remote Monitoring and ON/ OFF Control, DC 24V Operation - Solar Compatible

    Product Information

    Model No. Description Rated Watts Input Watts
    		 Delivered Lumens Universal Line Voltage (VAC) Max Line Current (Amp) @ 120-277
    		 THD Power Factor Weight
    LED-LP13040-UNV
    		 LED 15" Round Canopy 40 42
    		 4,800 120-277 0.34 - 0.15 <20% >0.90 12 lbs.
    LED-LP13060-UNV LED 15" Round Canopy 60 62 7,200 120-277 0.52 - 0.22 <20% >0.90 12 lbs.
    LED-LP13080-UNV LED 15" Round Canopy 80 82 9,600 120-277 0.69 - 0.30 <20% >0.90 12 lbs.
