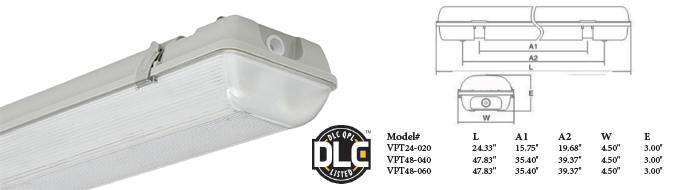

LED - Vapor Tight IP65 Fixtures - 2' / 4' - LED-VPT Series Description


  • LED Driver
  • Power Supply
  • Driver UL Rating
  • Driver UL Outdoor Rated
  • Start Method
  • Hot Re-start
  • Universal Input Line Voltage
  • Input Line Frequency
  • Driver Off-State Draw
  • Sound Rating
  • ANSI Surge Protection
  • Projected (L70) @ 25°C
  • Color Temperature
    		•  Constant 350mA
    Class 1
    Wet Location
    InstantON
    InstantON
    120-277 VAC
    50/60 Hz
    0 Watts
    Class A
    IEEE C62.41 C
    > 100,000 Hrs.
    5000°K
  • Color Rendering Index (CRI)
  • Minimum Starting Temperature
  • Maximum Starting Temperature
  • Lumens per Watt
  • Shock / Vibration Resistant
  • Power Factor
  • Total Harmonic Distortion
  • Inrush Current Peak
  • ETL Listed / UL Standard 1598
  • FCC Compliance
  • Housing IP Rating
  • Driver IP Rating
  • Warranty
    		•  > 80
    -40°F
    +50°F
    > 100
    Yes
    > 0.90
    < 20%
    < 10 Amp
    Yes
    Part 15, Subp. C
    IP65
    IP67
    5 Year

    LED - Vapor Tight IP65 Fixtures - 2' / 4' - LED-VPT Series

    Application, Features and Benefits
    • Heat & impact resistant reinforced plastic housing.
    • Diffused impact resistant acrylic lens ensures strength.
    • Corrosion resistant electrocoat grey finish (custom colors available).
    • Continuous silicone gasket surrounds lens for weather-tight (IP65) seal.
    • Slim design with tool-less entry polycarbonate latches.
    • High Output LED's.
    • High power factor, low THD driver with 6kV/3kA Surge Protection.
    • Instant-On flicker-free Cold Start and Hot Re-Start.
    • Bright white light (5000˚K) for greater visibility and safety.
    • LED engine design with Advanced Thermal Management.
    • Up to 15 year maintenance free operation.
    • 5 Year Warranty on complete fixture. (LED's, Driver, & Housing)
    • Optional: Bi-Level Dimming, 0-10V Dimming, Remote Monitoring and ON/OFF Control, DC 24V Operation - Solar Compatible.

    Product Information

    Model No. Description Rated Watts Input Watts
    		 Delivered Lumens Universal Line Voltage (VAC) Max Line Current (Amp) @ 120-277
    		 THD Power Factor Weight
    LED-VPT24-020-UNV Vapor Tight 2' LED 20
    		 21
    		 2,100
    		 120-277 0.17 - 0.07 <20% >0.90 4 lbs.
    LED-VPT48-040-UNV Vapor Tight 4' LED 40 41
    		 4,200 120-277 0.34 - 0.15 <20% >0.90 6 lbs.
    LED-VPT48-060-UNV Vapor Tight 4' LED
    		 60 61
    		 6,200 120-277 0.52 - 0.22 <20% >0.90 6 lbs.
