LED - 22-inch Polycarbonate High-Bay Fixture - High-Temp Rated Description


  • LED Driver
  • Power Supply
  • Start Method
  • Hot Re-start
  • Driver UL Rating
  • Driver UL Outdoor Rated
  • Sound Rating
  • ANSI Surge Protection
  • Driver Off-State Draw
  • Universal Input Line Voltage
  • Input Line Frequency
  • Projected (L70) @ 25°C
  • Color Temperature
    		• Constant Current
    350mA
    InstantON
    InstantON
    Class 1
    Wet Location
    Class A
    IEEE C62.41 C High
    0 Watts
    120-277 VAC
    50/60 Hz
    > 100,000 Hrs.
    5000°K
  • Color Rendering Index (CRI)
  • Minimum Starting Temperature
  • Maximum Starting Temperature
  • Lumens per Watt
  • Shock / Vibration Resistant
  • Power Factor
  • Total Harmonic Distortion
  • Inrush Current Peak
  • FCC Compliance
  • ETL Listed / UL Standard 1598
  • Housing IP Rating
  • Driver IP Rating
  • Warranty
    		•  > 80
    -40°C
    +65°C
    > 100
    Yes
    > 0.90
    < 20%
    < 10 Amp
    Part 15, Subp. C
    Yes
    IP43
    IP67
    5 Year

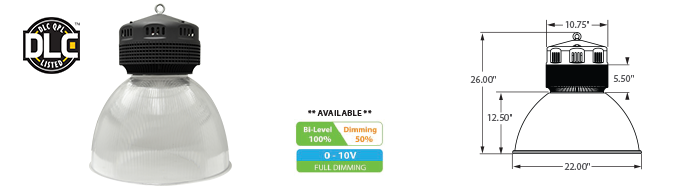

    LED - 22-inch Polycarbonate High-Bay Fixture - High-Temp Rated

    Application, Features and Benefits
    • 22" High Efficiencey, heat an impact resistant, UV protected, non yellowing polycarbonate refractor.
    • Corrosion resistant die-cast aluminum gear box with electrocoat finish.
    • High Output COB LED's
    • High power factor, low THD driver with 6kV/3kA Surge Protection.
    • High performance Thermal Management system.
    • Instant-On flicker-free Cold Start and Hot Re-Start.
    • Bright white light (5000˚K) for greater visibility and safety.
    • LED engine design with Advanced Thermal Management.
    • Up to 15 year maintenance free operation.
    • 5 Year Warranty on complete fixture. (LED's, Driver, & Housing)
    • Optional: Bi-Level Dimming, 0-10V Dimming, Wi-Fi Control, Remote Monitoring and ON/OFF Control.

    Product Information

    Model No. Description Rated Watts Input Watts

    		 Delivered Lumens Universal Line Voltage (VAC) Max Line Current (Amp) @ 120-277
    		 THD Power Factor Weight
    LED-19150-PC-UNV
    		 LED High Bay Fixture
    		 150 153
    		 16,500 120-277 1.40 - 0.60 <20% >0.90 25 lbs.
    LED-19180-PC-UNV LED High Bay Fixture 180 183 19,800 120-277 1.57 - 0.68 <20% >0.90 25 lbs.
    LED-19200-PC-UNV LED High Bay Fixture 200 203 22,000 120-277 1.75 - 0.75 <20% >0.90 25 lbs.
    LED-19240-PC-UNV LED High Bay Fixture 240 243 26,400 120-277 2.10 - 0.90 <20% >0.90 25 lbs.
