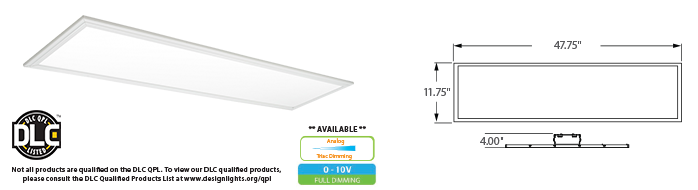

LED - 1' x 4' Edge Lit Ceiling Panel - LED-54xxx Series Description


  • LED Driver
  • Power Supply
  • Driver UL Rating
  • Start Method
  • Hot Re-start
  • Universal Input Line Voltage
  • Input Line Frequency
  • Driver Off-State Draw
  • Sound Rating
  • Projected (L70) @ 25°C
  • Color Temperature
    		• Constant Current
    350mA
    Class 1
    InstantON
    InstantON
    120-277 VAC
    50/60 Hz
    0 Watts
    Class A
    > 75,000 Hrs.
    3,500°K, 4,100°K, 5,000°K
  • Color Rendering Index (CRI)
  • Minimum Starting Temperature
  • Maximum Starting Temperature
  • Lumens per Watt
  • Shock / Vibration Resistant
  • Power Factor
  • Total Harmonic Distortion
  • Inrush Current Peak
  • FCC Compliance
  • IP Rating
  • Warranty
    		•  > 80
    -10°C
    +40°C
    > 100
    Yes
    > 0.90
    < 20%
    < 10 Amp
    Part 15, Subp. C
    IP43
    5 Year

    LED - 1' x 4' Edge Lit Ceiling Panel - LED-54xxx Series

    Application, Features and Benefits
    • Heat sink aluminum frame for excellent heat dissipation.
    • Aluminum backing for excellent thermal management.
    • Polyester powder coated frame with white finish.
    • Slim, state of the art, low profile design.
    • Correlated Color Temperatures of 3500°K, 4100°K, & 5000°K.
    • High Output LED's.
    • High power factor, low THD driver.
    • InstantON flicker-free Cold Start and Hot Re-Start.
    • Up to 15 years Maintenance free operation.
    • 5 Year Warranty on complete fixture. (LED's, Driver, & Housing)
    • Optional: 120V Analog Dimming, 0-10V Dimming, Remote Monitoring, Emergency Battery Backup

    Product Information

    Model No. Description Rated Watts Input Watts
    		 Delivered Lumens Universal Line Voltage (VAC) Max Line Current (Amp) @ 120-277
    		 THD Power Factor
    LED-54040-UNV LED 1x4 Edge Lit Ceiling Panel 40 41 4,400 120-277 0.34 - 0.15 <20% >0.90
    LED-54050-UNV LED 1x4 Edge Lit Ceiling Panel 50 51 5,500 120-277 0.43 - 0.18 <20% >0.90
    * Fixture Weight = 11 lbs.
